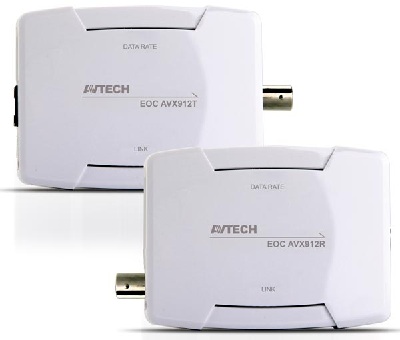

AVX912A - Konverter pakke, send+mott (IP over COAX)

Bilde mangler
    • Art. nr: 107951
    Logg inn for å handle

    Når du oppdaterer et gammelt anlegg fra analoge kameraer så kan du bruke denne for å slippe å bytte kabel.  Med en sender å mottager kan man fortsatt bruke den gamle koakskabelen for overføring av både lyd og bilde.

    FEATURES

    *Use over long distance EoC converter can be used for distances of up to 400 m for connection.

    *No set-up required Connections can be established by simply connecting coaxial cables and network cables.

    *Rich diagnostic LED lights With LED indications, user can easily perceive the unusual connection and solve the problem immediately

    General

    Power Source    DC12V / 1A
    Dimensions (mm)    92(L) × 69(W) × 15(H)
    Power Consumption(±10%)    2.2W
    Temperature    Operating: 10°C ~ 40°C / Storage: 0°C ~ 70°C
    Coaxial Cable Connection    3C2V, 112 braids (Up to 300m) / 5C2V, 128 braids (Up to 400m)
    Interfaces    Coaxial port for Ethernet over coaxial cable / RJ-45 LAN port
    LED Indications    Data rate: Blue / Link: Bi-color (Red / Blue)
    Transmission Speed    22Mbps
